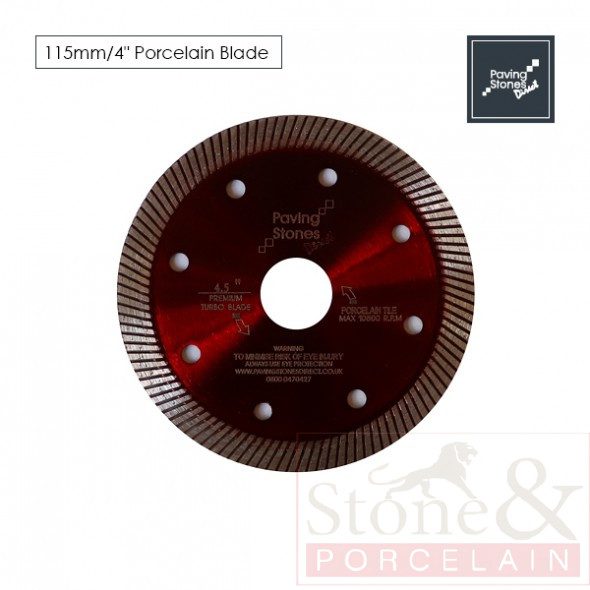

115mm Porcelain Diamond Cutting Blade – 22.2mm Bore
£15.00
The 115mm porcelain diamond cutting blade is designed for cutting dense porcelain paving with a compatible cutting tool. Its diamond cutting edge helps produce controlled, accurate cuts when trimming slabs around edges, corners, drainage and other obstacles.
The blade has a 115mm diameter and the matching supplier specification states a 22.2mm bore with a maximum rated speed of 10,500 RPM. Always verify the markings on the blade supplied and check the diameter, bore and maximum speed against your machine before fitting.
Key features
- 115mm blade diameter
- 4.5-inch nominal size
- Designed for cutting porcelain paving
- Synthetic diamond cutting edge
- 22.2mm bore
- Maximum rated speed: 10,500 RPM
- Suitable for compatible cutting machines
- One blade supplied
- UK delivery available
- UK Stock Held
- Fast Delivery TImes
- Secure Payments
Description
This 115mm porcelain cutting blade is intended for trimming and cutting porcelain paving during patio, pathway and landscaping installations.
Porcelain paving is a dense material and should be cut using a blade specifically intended for porcelain rather than a general-purpose masonry disc. The diamond cutting edge is designed to provide effective cutting performance when the blade is fitted and operated correctly.
Product specification
- Blade diameter: 115mm
- Imperial size: Approximately 4.5 inches
- Bore diameter: 22.2mm
- Maximum rated speed: 10,500 RPM
- Intended material: Porcelain paving
- Blade type: Diamond cutting blade
- Quantity: One blade
Product appearance and printed markings may vary. Always check the specification and maximum operating speed printed on the blade supplied before use.
Check compatibility before ordering
A 115mm diameter alone does not guarantee that the blade is compatible with every machine.
Before ordering or fitting the blade, check:
- That your machine accepts a 115mm cutting blade.
- That the machine spindle and flange are suitable for a 22.2mm bore.
- That the blade can be mounted securely using the machine’s correct flange arrangement.
- That the machine’s no-load speed does not exceed the maximum RPM printed on the blade.
- That the machine and guard are approved for diamond cutting discs.
- That the blade’s direction arrow matches the machine’s rotation.
Do not use the blade when the machine speed exceeds the maximum speed marked on the blade.
Designed specifically for porcelain
This product should be described as a porcelain blade rather than a general-purpose blade for concrete, brick and natural stone.
You already sell a separate 115mm Stone & Concrete Blade, so keeping the two products clearly differentiated will help customers choose the correct disc and reduce incorrect orders.
Cutting and safety considerations
Diamond cutting blades should only be used with suitable equipment and by someone competent to operate it.
Before use:
- Read the instructions supplied with the blade and cutting machine.
- Check the blade for cracks, distortion or other damage.
- Fit the machine’s correct safety guard.
- Use appropriate eye, hearing, respiratory, hand and foot protection.
- Control the dust produced while cutting.
- Secure the paving before starting the cut.
- Never use a cutting blade for side grinding.
- Stop using the blade if it becomes damaged or runs abnormally.
HSE guidance covers wheel selection, mounting, machine guards, handheld grinders, training and protective equipment. Bosch also advises never using a diamond cutting disc without a guard and states that damaged discs must not be used.
Wet or dry cutting
Always follow both the blade and machine instructions. An electric angle grinder must not be exposed to water merely because a blade may be capable of wet cutting.
Frequently asked questions
What diameter is the blade?
The blade has a nominal outside diameter of 115mm, equivalent to approximately 4.5 inches.
What bore size does it have?
The matching supplier specification states a 22.2mm bore. Confirm the measurement printed on the blade supplied before fitting it.
What is the maximum RPM?
The matching specification states a maximum rated speed of 10,500 RPM. The cutting machine must not exceed the maximum speed printed on the blade.
Will it fit every 115mm angle grinder?
Not automatically. Check the accepted blade diameter, bore, flange arrangement and machine speed before fitting.
Is it designed for porcelain paving?
Yes. It is specifically listed as a porcelain paving cutting blade.
Can it cut concrete or natural stone?
Use a blade specifically approved for the material being cut. Stone & Porcelain sells a separate 115mm stone and concrete blade for those materials.
Can it be used for grinding the cut edge?
No. Cutting discs should not be used for side grinding. Use an appropriate polishing or grinding wheel after cutting. Stone & Porcelain sells separate 115mm porcelain polishing wheels.
Additional Information
| Product type | Porcelain diamond cutting blade |
|---|---|
| Blade diameter | 115mm |
| Imperial size | 4.5 inches |
| Bore diameter | 22.2mm |
| Maximum rated speed | 10,500 RPM |
| Intended material | Porcelain paving |
| Cutting edge | Synthetic diamond |
| Quantity supplied | One blade |
| Brand | Paving Stones Direct |
